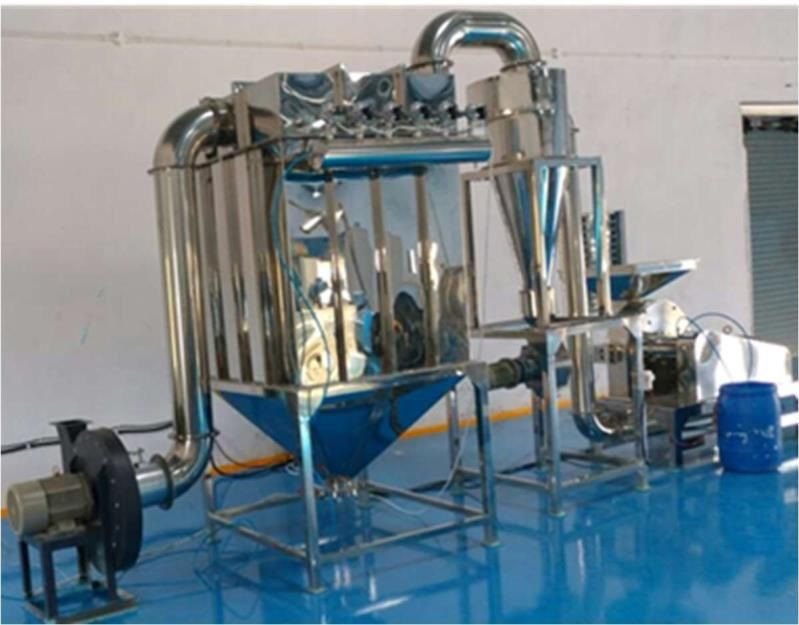

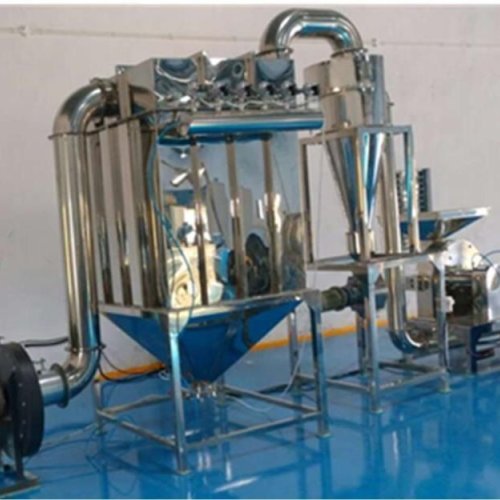

Grinder Machine

Introduction：

This machine consisted of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non- sieve or mesh, equality of granule size and continuous processing etc. It meets the international advanced level and issuitable for the material grinding by the trade of pharmaceutics, chemical, and Food stuff etc.

Technical Parameter:

Main motor : 15 kw to 50 kw

Capacity : 200 kg ./hr. to 1200 kg /hr. Discharge motor : 0.75kw

Spare parts Free:

With mesh 50:1 pieces inside the machineMesh 60: 2 pieces as spare Mesh 80:2 piece as spare

Feature: This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and blower fan etc. By means of relative motio between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Th crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugalforce, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder.

The crushing size can be adjusted by the screen.Designed according to GMP standard and wholly made of stainless steel, this machin has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reachin the international advanced level.
