Artificial Rice and Food Processing Unit

Function :

Extrude And Cook Raw Material In To Different Size And Shape S

Features :

Screw Material Is 38Crm0A1 With Nit Riding Treatment ,The Hardness Is Include Cooling & Hot Water Tank With Pump 4.75 Kw 60Hrc .. The Barrel Also Use Good Material .Hardness Is 55Hrc..

The Gear Box Has Forced Lubrication System .

All Motors Can Be Adjusted The Speed By Inverter . The Extruder Can Change Different Models To Produce Different Shapes Products

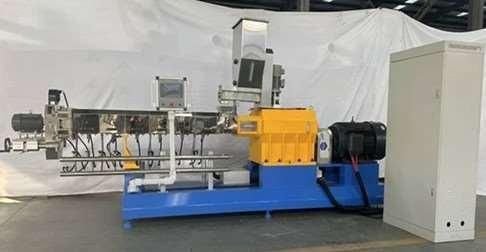

Function：Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following

Approx Output : 600- 700kG/HR.

extruding power : 90kw (Siemens beide,) oil pump power : 0.55kw

Inverter : Delta BRAND cutting power 3

Kw feeder power : 1.5kw,inverter Delta BRAND

Screw diameter 78mm and Length 2245mm,effective length 2030mmWith PLC Seperate touch screen

Square barrel type,with water cooling System.

Barrel and screw Hardening treatment processing Have alone control cabinet.

Feeder,Main motor and cutter motor are controlled by inverter.

Quantity: 1pc

Voltage: 415V 50HZ Three Phase

Introduction：

This machine consisted of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non- sieve or mesh, equality of granule size and continuous processing etc. It meets the international advanced level and issuitable for the material grinding by the trade of pharmaceutics, chemical, and Food stuff etc.

Technical Parameter:

Main motor : 15 kw to 50 kw

Capacity : 200 kg ./hr. to 1200 kg /hr. Discharge motor : 0.75kw

Spare parts Free:

With mesh 50:1 pieces inside the machineMesh 60: 2 pieces as spare Mesh 80:2 piece as spare

Feature: This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and blower fan etc. By means of relative motio between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Th crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugalforce, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder.

The crushing size can be adjusted by the screen.Designed according to GMP standard and wholly made of stainless steel, this machin has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reachin the international advanced level.

Speed controlled by inverter; To dry the product enough.

1.The electric heating pipes are installed in different layers.

2.The belt speed can be controlled by the control cabinet, to control the drying time of the product in the dryer, to make sure dry the product enough. 3 Three drive motor for variety speed of different layer according to drying conditions. Three motor controlled by VFD. 4 hot air circulation system ensure the drying properly. 5 Input with swing spreader machine. 6 all the mesh belt along with back-plate which avoid rice kernels falling outside.

The ribbon blender used to mix raw material and water, there are two ribbon blenders which using interchangeably; there is a pump and spraying nuzzle system which used to pump water into ribbon blender for mixing.
