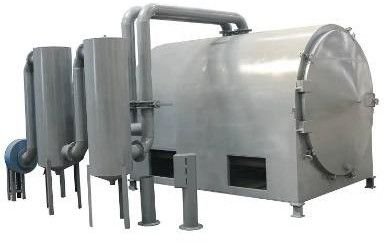

Carbonization Charcoal Making Plant

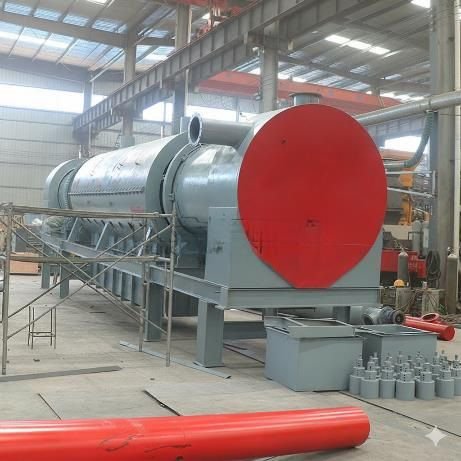

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Bio Charcoal Making Plant and Continuous Bio Charcoal Making Plant from Saharanpur.
| Business Type | Manufacturer, Supplier |
| Packaging Type | Not Applicable |
| Type | Equipped with Smoke Purification System |
| Material | Boiler Steel |
| Capacity | 1 To 1.5 Ton / Batch |
| Usage | Bio Charcoal Production |
| Model | CJL-1000 |
| Internal Dimension | 1.5 * 3 * 12 M |
| External Dimension | 3.3 * 1.8 * 2.4 M |
| Batch Duration | 24 To 36 Hrs. |
| Typical Batch Duration | 24 To 36 Hrs. |
| Business Type | Manufacturer, Supplier |
| Lubrication System | Manual Lubrication |
| Type | Charcoal Making Plant |
| Output | 1000-1200kg/h |
| Dimensions | 12.5*6.5*4.5m |
| Liner Size | 1*10m |
| Weight | 10t |
| Power | 28kw |
( Low Temperature drum carbonization furance ) Equipped with 7 m feed conveyor and 6 discharger carbon Ratio : 88 %
1. Purification system Includes one water spray tank, one condenser tank (or two sets) with increased size
2. Conveying 7-meter feeding spiral conveyor motor
4-5.5kw (variable frequency motor); Reducer BWD-2-29 4kw Discharge cooling conveyor screw 6-meter motor 5.5kw; Reducer (motor 5.5kw)
3. Motor Main motor:
7.5kw variable frequency drive motor; Reducer ZXY350, speed ratio 43, variable frequency motor 7.5kw Fan: Main fan (used for extracting smoke), variable frequency motor 7.5kw Air supply fan: equipped with ignition stove, motor 4kw
4. The burner includes: Main burner (stove head): 5 Secondary burner: 1 (used for burning excess flue gas) Liquefied gas burner (if the fuel is gas): one vaporizer should be equipped (additional cost)
5. Electrical control cabinet: one main control cabinet; 5 small control cabinets (ignition stove, alarm device)
6. Ignition system
