Carbonization Charcoal Making Plant

Unlock the advantages of our Carbonization Charcoal Making Plant, an incomparable innovation from a manufacturer with over 43 years of unparalleled expertise. Whether opting for the Batch Type Biocharcoal Making Plant or the Continuous Type Bio Charcoal Making Plant, our solutions offer magnificent efficiency and marvelous performance for all your carbonization needs. With the ability to produce superior-quality biocharcoal continuously or in controlled batches, this plant ensures optimal productivity while maintaining eco-friendly operations. Offering new standards in durability, our robust design guarantees reliable long-term usage. Equipped with advanced technology, it delivers unmatched precision and consistency in charcoal production. Experience the marvel of cost-effective operations combined with higher yield potential, giving your business the edge it deserves. Perfectly suited for applications across All India, our Carbonization Charcoal Making Plant sets a new benchmark in carbonization solutions. Get ready to elevate your productivity and shape a sustainable future with this outstanding equipment, tailored to meet the high demands of the market.

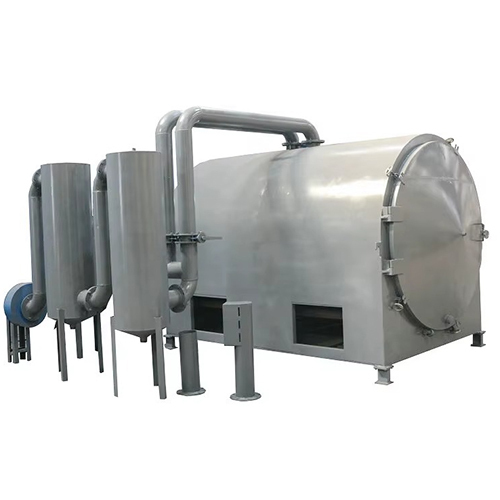

Batch Type Biochar Activated Carbon Making Machine

MOQ : 1 Unit

  • Accessories
  • Exhaust System, Cooling Conveyor, Control Cabinet
  • Automatic Grade
  • Other, Semi-Automatic / Fully Automatic options
  • Automation Grade
  • Automatic / Semi-Automatic
  • Capacity
  • 2-10 tons per batch
  • Color
  • Industrial Grey or Custom
  • Computerized
  • Yes
  • Control System
  • Other, PLC Based Control Panel
  • Dimension (L*W*H)
  • Customization Available (e.g. 6500 mm x 3200 mm x 3800 mm)
  • Drive Type
  • Other, Electric Motor-Driven
  • Driven Type
  • Motor Driven
  • Efficiency (%)
  • >90%
  • Features
  • Energy Efficient, Continuous Operation, High Yield, Robust Construction, Low Emission Design
  • Frequency
  • 50/60 Hz
  • Installation Guideline
  • Onsite Supervision and Commissioning available
  • Machine Type
  • Biochar Carbonizer / Activated Carbon Production
  • Material
  • Stainless Steel / Carbon Steel
  • Model No
  • BT-ACM Series
  • Motor Power
  • 25-75 HP
  • Power
  • 25-75 kW (Depending on Model)
  • Power Consumption
  • As per model
  • Production Capacity
  • 500 - 5000 kg/hr (Model-Dependent)
  • Speed
  • Adjustable, Up to 1500 RPM
  • Surface Finish
  • Other, Painted / Polished
  • Temperature Range
  • 400C - 900C
  • Type
  • Batch Type Biochar Activated Carbon Making Machine
  • Usage & Applications
  • Biochar and Activated Carbon Production from Biomass, Wood, Coconut Shell, Agricultural Waste
  • Voltage
  • 380V / 415V
  • Weight (kg)
  • 4000 - 8000 kg (Depending on Capacity)

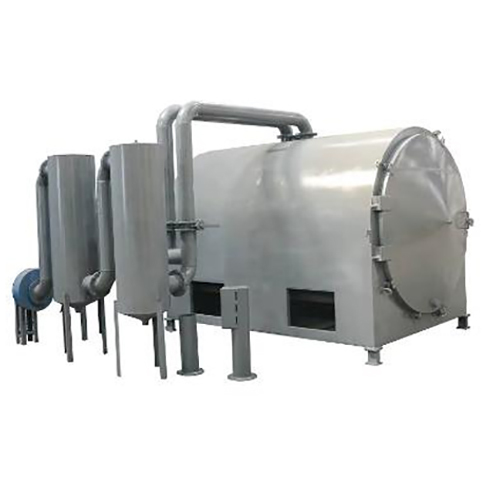

Biocharcoal Making Plant (Batch Type)

MOQ : 1 Unit

  • Accessories
  • Feeding Hopper, Discharge System, Cyclone Separator
  • Automatic Grade
  • Semi-Automatic
  • Automation Grade
  • Semi-Automatic
  • Capacity
  • 1-2 TPD (Tons per Day)
  • Color
  • Industrial Green & Black
  • Computerized
  • No
  • Control System
  • Other, Panel Based
  • Dimension (L*W*H)
  • 6500 mm x 2400 mm x 3100 mm
  • Drive Type
  • Electric
  • Driven Type
  • Electric
  • Efficiency (%)
  • Over 90%
  • Features
  • High Conversion Efficiency, Low Emission, Robust Design, Easy Installation
  • Frequency
  • 50 Hz
  • Installation Guideline
  • Foundation Required, Installation Manual Provided
  • Machine Type
  • Biocharcoal/Kiln Carbonizer
  • Material
  • Mild Steel
  • Model No
  • BPC-BT2000
  • Motor Power
  • 5 HP
  • Power
  • 15-18 kW
  • Power Consumption
  • 15-18 kW/Batch
  • Production Capacity
  • Up to 1500 kg/Batch
  • Speed
  • Customized as per Batch Requirement
  • Surface Finish
  • Other, Powder Coated
  • Temperature Range
  • 350C to 700C
  • Type
  • Batch Type
  • Usage & Applications
  • Agricultural Waste to Biochar, Charcoal Briquette Production
  • Voltage
  • 380-440 V
  • Weight (kg)
  • Approx. 7500 kg

Continuous Bio Charcoal Making Plant(Continuous Type)

MOQ : 1 Unit

  • Accessories
  • Conveyor, Cooling System, Cyclone Dust Collector, Flue Gas Filter
  • Automatic Grade
  • Automatic
  • Automation Grade
  • Fully Automatic
  • Capacity
  • 1000-1200 kg/hr (Input Material)
  • Color
  • Industrial Grey / Custom Options
  • Computerized
  • Yes
  • Control System
  • Other, PLC Based Control Panel
  • Dimension (L*W*H)
  • 12500 mm x 2800 mm x 3200 mm (Approx)
  • Drive Type
  • Electric
  • Driven Type
  • Electric
  • Efficiency (%)
  • Above 90%
  • Features
  • Continuous operation, energy efficient, low emissions, integrated safety controls
  • Frequency
  • 50 Hz / 60 Hz
  • Installation Guideline
  • On-site Installation & Commissioning by Supplier
  • Machine Type
  • Charcoal Making Plant
  • Material
  • Mild Steel, Stainless Steel
  • Model No
  • CBM-1200C
  • Motor Power
  • 30 HP (Main Drive)
  • Power
  • 30 kW (Approx)
  • Power Consumption
  • 24-30 kW/hr
  • Production Capacity
  • 400-500 kg/hr (Bio Charcoal)
  • Speed
  • Variable (Automated)
  • Surface Finish
  • Other, Powder Coated / Painted
  • Temperature Range
  • 350C - 650C
  • Type
  • Continuous Bio Charcoal Making Plant (Continuous Type)
  • Usage & Applications
  • Biomass charcoal production from various agricultural and forestry residues
  • Voltage
  • 380V-440V
  • Weight (kg)
  • 18000 kg (Approx)
